73mm Thin LCD Monitor Motorized Lift with 15.6 Inch Touch Screen Aluminum Brushed Panel
Introduction:
LCD Motorized monitor lift is a new ultra-thin design integrated with 15.6 FHD screen for office audio video solution.
It is high technologies lifting equipment with screen. Only 7.3cm width of product to make lift with table more smart and fashionable.
It could lift the monitor vertical retractable automatically by wireless remote, and make the screen motorized horizontal overturn 15~35 degree. It could make the screen straight with 15-35 degree moving back, and lifting down vertical into lifting equipment case. It provides a convenient and advance solution for meeting, particularly for enormous information presentation, like data, image, sound, PPT ect. LCD TV lift could be integrated with 17.3” touch screen, discussion microphone, front camera and all in one smart computer. The lift mechanism support RS232/RS485 communication protocols. It can be distantly controlled by AMX/Crestron central controller or wireless automatically system.
Feature:
1, Lift integrated with 15.6 inch FHD LED screen for data, image, sound all information presentation.
2, Adopt powerful dual motor, one motor to control monitor vertical lifting up and down, anther motor to control screen horizontal overturn 12 degree angle
3, Smart circuit board to control all components working properly. Offer monitor protection, cut the monitor electricity down automatically if reach the bottom case. And supply electric to monitor naturally once arrived the desktop.
4, Aluminum black or silver color are available for normal selection, aluminum gold color could be customized if required.
5, Made of 4mm thick aluminum alloy drawing panel and brush aluminum alloy monitor shell, provided smart, elegant and high grade appearance.
6, Ultra-thin Design, only 7.3cm width of whole product, Monitor is 8mm thickness.
7, Complicated with AMX/Crestron or other central controller via RS232 port.
8, It’s smoothly and quietly during monitor lifting. Low noise which less than 30db.
Customized Option:
| 1 | FHD Screen, HD Screen, Touch Screen |
| 2 | Customized panel with discussion microphone |
| 3 | Customized panel with USB connector |
| 4 | Customized panel with Computer Switch |
| 5 | HDMI cable with input for underneath installation |
| 6 | Panel & monitor shell could be anodized in different color |
Selling Ports:
1, Whole complete lifting equipment all in one system with 15.6 Inch FHD wide screen.
2, 10 year experience on manufacturing LCD monitor lift, mature produce line to keep bulk quality steady.
3, High quality circuit board & superior motor and brands FHD screen to offer long working life.
4, Provide full brushed aluminum alloy monitor shell and brushed alloy panel
5, Equipped with HDMI, USB,RS232 data interfaces for convenient data access.
6, Packed with strong carton with foam cushion to protect product during transportation. Wood box package for Express or air shipment.
Application:

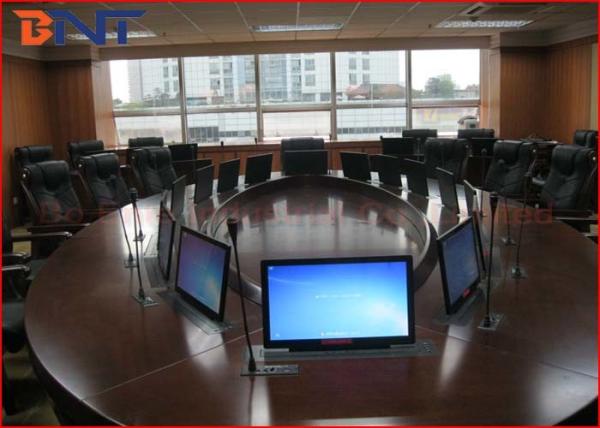

The LCD monitor lift with screen is widely use on conference room, meeting room, hotels make paperless office system become true. It make meeting information presentation more easy, clear and convenient.
Detail Parameter:
| BET | Model No. | BLL-15.6 |
| Materail | Panel | aluminum alloy brushed |
| Monitor Shell | aluminum alloy brushed |
| Cover | aluminum alloy brushed |
| surface | tempered glass |
| Dimension | Panel | 48*7.3cm |
| Panel Thickness | 0.4cm |
| Inner panel | 39*3cm |
| Case | 46.3*7*55cm |
| Monitor frame thickness | 8mm |
| Information | Pitch Angle | 12° |
| Switch | up/down/stop |
| Selection | Color | silver/ black/ gold/titanium |
| Switch | computer /central control |
| Panel Input | USB/HDMI |
| Monitor | Size | 15.6" LED touch screen |
| Brand | Samsung |
| Format | 16: 9 |
| Resolution | 1920*1080 |
| Viewing Area | 344.2*193.5mm |
Product Pictures:
Product Tags:
|
|
73 Mm Super Thin Office Meeting Room LCD Computer Lift With 15.6 Inch Touch Screen Images
|
