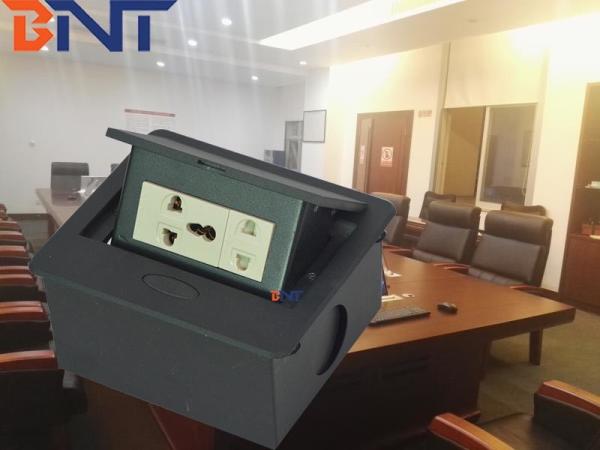

mini outlet zinc alloy material hidden type media pop up socket
Introduction:
Conference tabletop hidden pop up socket, one modern office conference room multio-function AV power connector solutions. This socket normally contain the office high-quality projection audio video connected function for HDMI,VGA, Audio and Video. And it also supply with the computer network connector and the USB data solutions. What's more, it normally supply with the universal power outlets which can fit for every difference power plugs.
This socket normally mount on the table and all connectors and hidden under the surface zinc alloy panel. Through press the botton on the surface panel, the socket would be pop up and the connection panel would be shown. User can connected their cable plugs easily.
Desk hidden socket offer a hidden equipment for audio video solution in office furniture. Could save more space and keep table integral and conforming. To supply a fashion and modern environment for office and meeting room.
Feature:
1, Normally install desktop power plug on office furnishes, like office desk, meeting table or other office worktop.
2, Hidden socket into table underside to keep desktop surface more neat, modern and save more space.
3, Just press the product button, the spring inside the socket box will pop all media socket with plat up to the tabletop, user could plug each connector directly. Just press the cover back to table underside if finished using.
4, Panel surface made of zinc alloy material with anode oxidation process, bottom case made of steel material, powering with black color. Antioxidative and won't loose color.
5, Rectangle high-thick 3mm surface panel, not easy to scratch and bend
6, Smart and compact, easy to installion and operation, can supply with 1* 3-pin universal power and 1* 2-pin power.
7, Can support customized made with difference module as request. It normally can make with HDMI, VGA, USB data, USB charger etc.
8, Welding design with the bottom box, easy to connected, can be supply with connection power cable plugs as needful.
Parameter:
| Product name | Desktop Hidden Pop Up Socket |
| Model number | BD300-1R |
| Material | Zinc Alloy finished |
| Panel size | 138*130mm |
| Case size | 126*106*68mm |
| Surface thickness | 3mm |
| Cutout size | 127*107mm |
| Corner | Round corner |
| Button | Oval pop up button |
| Color | Black |
| Panel treatment | Dull polish and anti-rust treatment |
| Power | 1* 3-Pin power outlet + 1* 2-pin power outlet |
| Cable Length | Without bottom connection cables |
| Usage | High-class office conference table |
| Certification | UL/CE/ROSH/SASO |
| Warranty | 12 month |
| OEM | Yes |
| Rated voltage | 110 ~ 240 VAC |
| Rated current | 10 ~ 16 A |
| Rated power | 3680 W |
| Differnece module | Yes, supply with difference module as need |
